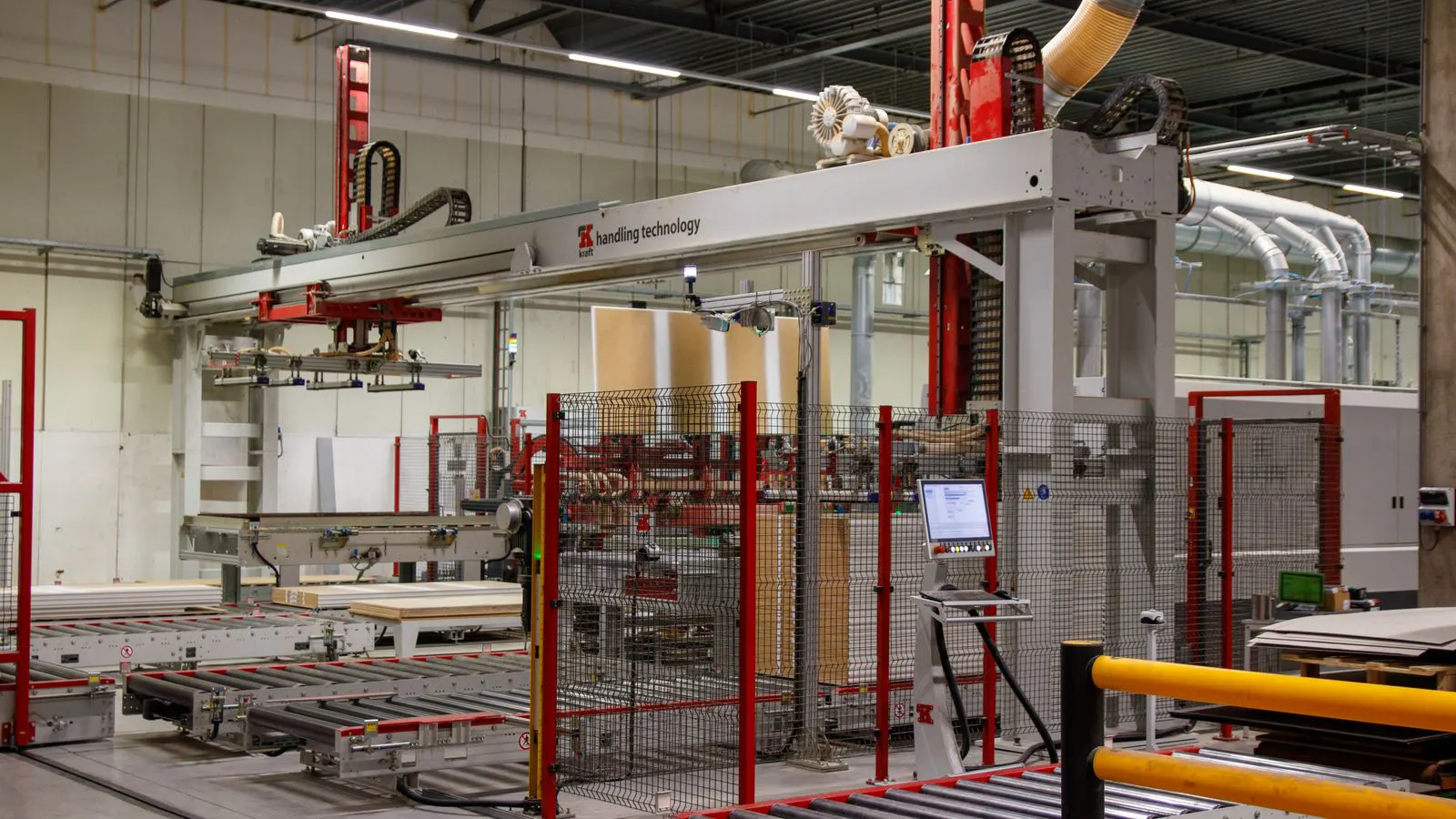

Preventive Maintenance Checklist for Linear Motion Systems

Why a Written Checklist Matters More Than Memory

A linear motion maintenance routine works best when it follows a written sequence rather than relying on habit. Technicians often miss small issues because they focus on the most visible part of the system. A checklist forces attention to lubrication points, alignment, fasteners, and surface condition. This approach keeps work consistent across shifts and sites.

The checklist also protects the equipment. Linear guides and rails operate under load, vibration, and environmental exposure. Without regular attention, contamination can accelerate wear. Proper lubrication reduces friction and heat. A scheduled visit identifies problems while they are still minor.

Consider a packaging line where the conveyor table moves a meter per cycle. If a technician only checks the motor, they might miss a cracked wiper seal on the linear guide. That seal sits between the guide housing and the moving carriage. When it fails, coolant from the nearby process head enters the cross section. The next week, the carriage seizes. A written checklist includes a specific line for wiper inspection. The technician checks the seal, finds the crack, and orders a replacement. The failure is avoided.

Memory fails when the work environment changes. A new operator joins the team. They know the machine but not the subtle signs of rail distress. A checklist standardizes the inspection. It tells the operator exactly what to look for, how to look for it, and what action to take if the condition is out of spec.

What to Check First: Visual Inspection

Begin every visit with a visual scan of the linear motion system. Look for chips, scratches, and scoring on the rail surface. Inspect the cross section for damage to the rolling elements. Check for missing or damaged seals and wipers. These parts protect the internal lubrication from dirt and moisture.

Pay attention to the mounting area. Loose fasteners create vibration. Vibration increases wear on the guide and the surrounding structure. Tighten or replace fasteners that show movement. Replace worn anti-vibration pads if they are present.

Look for contamination. Oil mist, coolant, and water all affect performance. Identify the source of contamination when possible. A leaky fitting or an open machine section may be causing the problem. Correct the source before applying lubricant.

Visual inspection is about finding evidence of stress. A fresh scratch on the rail face suggests a hard particle entered the contact zone. A dark streak along the wiper indicates lubricant is mixing with abrasive dust. Both are early warnings. A technician with a flashlight and a magnifying glass can often spot these marks before a micrometer confirms the problem.

Check the ends of the rail. End caps and return channels are prone to impact damage. If the carriage stops or reverses abruptly, the impact loads land on these areas. A dented end cap can trap debris. A cracked return channel can allow the rolling elements to escape. Inspect these areas carefully. They are often the first point of failure in high-speed applications.

Do not rush this step. The visual check takes five minutes but prevents a four-hour repair. A scratched rail looks like a minor cosmetic issue until the carriage starts to skip. By then, the damage has propagated.

Lubrication: Grease, Oil, and Application Frequency

Lubrication is the core of linear motion maintenance. The method depends on the guide type and the environment. Oil-lubricated guides use a continuous supply. Grease-lubricated guides rely on periodic application or wiper systems.

Check the oil supply line for blockages. Inspect the reservoir level. Replace the filter at the scheduled interval. For grease systems, verify that the wiper or seal is intact. Apply grease to the specified points. Avoid overfilling the cross section. Excess grease attracts dust and can damage the rolling elements.

Match the lubricant to the operating conditions. High heat may require a specific grade. Low temperature may require a lighter oil. Use the lubricant recommended for the guide design. Do not mix different lubricant types without checking compatibility.

Oil systems require attention to the fluid path. The reservoir holds the lubricant. The pump moves it to the rails. The filters keep it clean. If the reservoir is low, the pump may draw air. Air in the oil causes cavitation and noise. The carriage will vibrate. Check the reservoir level and top up with the correct oil if needed. If the fluid is dark and gritty, flush the system.

Grease systems are simpler but more prone to operator error. The wiper seal draws lubricant from the grease reservoir and spreads it over the rail. If the seal is worn, grease escapes. If the seal is too tight, it restricts flow. Both conditions lead to dry spots. Apply grease only as specified. Too much grease creates a paste that traps metal chips. Those chips act like sandpaper. They score the rail surface and wear the rollers.

Frequency matters. A guide running at high speed in a dusty environment needs more frequent attention than a slow-moving guide in a clean room. The maintenance log should record the last lubrication date. If the interval has passed, apply lubricant. Do not wait for the machine to sound wrong.

Component	Inspection Item	Action if Issue Found
Oil reservoir	Level and contamination	Refill or flush
Filter	Clogging or bypass	Replace at interval
Wiper seal	Cracks or compression set	Replace seal
Grease fitting	Blockage or leakage	Clean and re-lubricate
Rail surface	Scoring or contamination	Clean and inspect

Alignment and Mechanical Fit

Misalignment is a common cause of early failure. Check that the machine frame and the guide are parallel. Measure the gap between the moving table and the fixed structure. Look for deflection under load. Excessive play indicates that the bearing or mounting hardware has worn.

Inspect the mounting surface for corrosion or flat spots. Replace any hardware that shows deformation. Ensure that the guide is seated correctly on the base. A guide that sits unevenly will wear unevenly.

Check the coupling and drive mechanism. Verify that the ball screw or lead screw is properly aligned with the guide. Misalignment creates side load. Side load increases wear on the rolling elements.

Alignment is not just about the guide. It is about the relationship between the guide and everything it supports. If the table is not parallel to the rail, the carriage experiences lateral force. That force pushes the rolling elements against the raceway. The contact patch widens. Heat builds. The lubricant breaks down.

Use a straightedge or a laser level for this check. A small error in the mounting hole location can compound over the length of the rail. A one-millimeter offset at the end of a one-meter rail is manageable. At the middle of the rail, the carriage may bind.

Torque the fasteners to the specified value. Under-tightening allows vibration. Over-tightening warps the guide housing. Warping changes the rail geometry. The carriage no longer moves in a straight line. The accuracy of the machine drops.

If the guide is mounted on a cast iron base, check for oil contamination. Oil can weaken the bond between the guide and the base. Clean the surface. Apply the specified adhesive or sealant if recommended. Let it cure before mounting.

Contamination Control and Cleaning

Contamination is the enemy of precision linear motion. Dust, metal chips, and coolants cause abrasive wear. Cleaning should be part of every maintenance visit. Use a lint-free cloth and a suitable solvent. Avoid compressed air if it drives dirt into the guide.

Install protective covers when the machine is idle. Covers reduce dust accumulation. Inspect the covers for damage. Replace torn or worn covers immediately.

In wet environments, check for condensation. Condensation can corrode metal surfaces. Apply a protective oil if condensation is present. Keep the area around the guide dry. Remove water before the next shift.

Cleaning is a controlled process. Compressed air is convenient but dangerous. It forces fine particles into the cross section. Those particles remain there. They abrade the rolling elements. Use a brush to remove loose chips. Wipe the rail with a solvent-dampened cloth. Solvents cut through grease and dissolve organic contaminants.

Metal chips are particularly damaging. They are hard and sharp. A single chip can score a deep groove in the rail. Scored rails create noise and vibration. They accelerate wear on other components. Remove chips manually. Do not use a brush that has bristles that can snap.

Covers are a passive defense. They keep dust out when the machine is stopped. But they do not stop dust that is already inside. They must be intact. A tear in the cover fabric lets dust in. A broken latch allows the cover to fall open. Inspect the covers during every visit. Replace them if they are worn.

Condensation is a hidden threat. It forms when the temperature changes. It collects in the cross section. Water and oil do not mix. Water settles at the bottom. It contacts the metal surfaces. Rust forms. The rolling elements pit. The guide fails. In humid environments, apply a thin layer of protective oil after cleaning. This repels water.

Documentation and Trend Tracking

Record every maintenance action in a log. Note the date, the technician, the lubricant used, and the condition of the parts. Include the serial number of the guide and the machine. This data helps identify patterns.

If the same component fails repeatedly, investigate the root cause. It may be an alignment issue, a contamination problem, or an operating speed that is too high. The log provides the evidence needed for a fix.

Keep spare parts for critical components. Store seals, wipers, and fasteners near the machine. Use the same part numbers that appear in the maintenance log. This prevents delays during emergency repairs.

Documentation is not about creating a paper trail for audit purposes. It is about creating a memory for the equipment. A log entry that says “wiper seal replaced” is a data point. A log entry that says “wiper seal replaced, rail surface clean, oil level topped up” is a system check. The difference is context.

Trend tracking reveals what the machine is trying to tell you. If the filter clogs faster each month, something is wrong. It may be a new source of contamination. It may be a leak. It may be a change in the process. The log shows the pattern. Without it, the technician replaces the filter and moves on. The underlying issue remains.

Keep spare parts organized. A drawer full of mixed seals is useless. A labeled kit with the correct part numbers is ready for use. When a seal fails, the technician does not have to search. They take the part from the kit. The repair takes minutes instead of hours.

When to Replace a Linear Guide

Wear is inevitable. A guide should be replaced when the wear exceeds the manufacturer’s limit. Look for deep scoring that cannot be removed by cleaning. Replace the guide if the rolling elements show significant damage.

Check the cross section for pitting. Pitting indicates surface fatigue. Replace the guide if pitting is widespread. Do not attempt to repair a damaged rail with a new seal. The rolling contact is compromised.

Replace the guide when the machine cannot meet its accuracy requirements. If the machine shows drift or lost precision, the guide is likely the cause. A new guide restores the system’s performance.

Replacement is a decision based on performance, not age. A guide that is ten years old may still be within spec. A guide that is two years old may be failing. The condition of the rolling contact is the key. If the raceway is worn, the clearance between the carriage and the rail increases. The machine loses precision.

Deep scoring is a sign of severe damage. A light scratch can be cleaned. A deep groove changes the geometry. The carriage no longer moves smoothly. The noise level increases. The vibration transmits to the machine frame. The guide must be replaced.

Pitting is a form of surface fatigue. It occurs when the rolling elements are under high stress. The metal surface breaks down in small craters. These craters accumulate. The surface becomes rough. The lubrication film is disrupted. The guide fails.

If the machine shows drift, the guide may be the cause. Drift can also come from a worn ball screw or a loose coupling. Isolate the guide first. Check the other components. If the guide is the only worn part, replace it. If multiple parts are worn, replace the assembly.

Common Mistakes to Avoid

Do not skip the inspection step to save time. Ten minutes of checking prevents a full shutdown. Do not use a lubricant that is not rated for the operating temperature. Do not ignore small leaks. A small leak becomes a large failure.

Do not tighten fasteners too much. Excessive torque can warp the guide housing. Use the specified torque value. Do not assume that a new machine needs less maintenance. The first maintenance visit should be thorough.

Do not rely on a single type of check. Combine visual inspection, measurement, and documentation. This multi-layered approach catches problems that a single method would miss.

Skipping inspection is the most common error. Technicians under pressure want to fix the immediate problem. They do not have time to check the rest of the system. But the rest of the system is where the next problem is hiding. The inspection takes ten minutes. The failure it prevents takes ten hours.

Using the wrong lubricant is a subtle mistake. A heavier grease may feel better in the hand. It may not perform in the heat. A lighter oil may not protect in the cold. The lubricant must match the operating conditions. Check the data sheet. Do not guess.

Ignoring small leaks is a dangerous habit. A drip of coolant looks like a nuisance. It is a warning. The coolant is finding a path into the guide. That path will widen. The seal will fail. The machine will stop. Fix the leak now.

Overtightening fasteners warps the guide. The housing is not designed for extreme stress. It is designed for the specified torque. Use a torque wrench. Do not use a pipe wrench. The force must be controlled.

A new machine is not a maintenance-free machine. The first visit should be as thorough as the tenth. The factory settings are a starting point. The operating environment will change. The maintenance plan must adapt.

Final Note on Long-Term Reliability

Linear motion maintenance is a system of small, repeated actions. Each action protects the next. A clean rail, a properly aligned guide, and a logged maintenance history work together to extend component life. The goal is not to replace parts on a fixed calendar. The goal is to keep the system performing within its design limits. A well-executed maintenance plan reduces downtime and protects the precision of the machine.

Long-term reliability comes from consistency. One good visit does not save the machine. A hundred good visits do. The maintenance plan must be part of the machine’s operation. It is not an extra task. It is a core function.

When the system performs well, the operator notices. The machine runs smooth. The product quality is consistent. The downtime is low. When the system fails, the operator notices. The machine stops. The repair is expensive. The difference is the maintenance.

Treat the maintenance log as a tool. Use it to find patterns. Use it to plan replacements. Use it to train new operators. The log is the memory of the machine. Without it, every visit starts from scratch. With it, every visit builds on the last.
