How Force Calculation Works for Linear Motion Tasks

Why Force Calculation Matters in Linear Motion Design

Force calculation determines the minimum push or pull an actuator must provide to move a load reliably. It is the first engineering step before selecting hardware. Without it, designers risk picking actuators that stall under load or overspending on oversized units that waste energy.

The process combines basic physics with practical system constraints. It turns raw weight and speed targets into a concrete force number. That number drives the selection of cylinders, motors, or slide mechanisms.

Core Variables in Linear Motion Force

Several variables feed into the total force equation. Each one changes how much power the actuator needs.

The load mass sets the baseline. Heavier payloads demand more force. This includes the object being moved, the carriage, and any attached tooling. Designers often add a small safety margin to account for wear or unexpected additions.

Acceleration defines how quickly the system must reach speed. Higher acceleration requires greater force. This follows from Newton’s second law, where force equals mass times acceleration. The faster the move, the bigger the actuator must be.

Friction resists motion. It comes from bearings, guides, and seals. Friction is not constant; it changes with speed, temperature, and surface condition. Designers estimate it using coefficients or manufacturer data.

Gravity affects the system when the slide is vertical. On a vertical axis, gravity adds or subtracts from the load depending on the direction of travel. On horizontal axes, gravity has no direct effect on the force required.

The Basic Force Equation

The standard force calculation uses a sum of three main components. This formula gives the total force in newtons.

Total force = Load force + Friction force + Acceleration force

Each term needs a value before the equation can be solved. Load force comes from weight. Friction force comes from the guide system. Acceleration force comes from the required speed profile.

The load force is mass times gravitational acceleration. For a horizontal slide, this value is zero because gravity does not pull along the axis of travel. For a vertical slide, it equals mass times 9.81 meters per second squared.

Friction force depends on the linear guide type. Ball screws and linear bearings have different friction characteristics. Designers use coefficient values to estimate this force. A typical linear bearing might show a friction coefficient of 0.005 to 0.02. The value multiplies the normal load to give the friction force.

Acceleration force equals mass times the required acceleration. The acceleration value comes from the motion profile. If a system must reach full speed in one second, the acceleration is speed divided by one second. This value multiplies the total moving mass.

How Orientation Changes the Calculation

Orientation changes which forces apply and how they combine. A horizontal slide and a vertical slide follow different logic.

On a horizontal slide, gravity does not act along the travel axis. The force needed comes from friction and acceleration. The load weight only affects friction, not the direct force along the axis. This often reduces the required actuator size compared to a vertical setup.

On a vertical slide, gravity acts directly against the motion. When moving upward, the actuator must overcome both the load weight and friction. When moving downward, the actuator must control the load, preventing it from falling too fast. This requires a different control strategy, such as braking or a holding valve.

The direction of travel matters for vertical systems. An upward stroke demands more force than a downward stroke. Designers size the actuator for the worst case, which is usually the upward move. They also consider the return phase to ensure safe deceleration.

Worked Example in Plain Words

Imagine a machine tool that moves a 50 kilogram carriage on a horizontal linear rail. The carriage must reach 2 meters per second in 0.5 seconds. The linear rail has a friction coefficient of 0.01.

First, find the load force. Since the slide is horizontal, gravity does not add to the force along the axis. The load force for this term is zero.

Next, estimate the friction force. The normal load equals the weight of the carriage. Weight is mass times gravity, which is 50 times 9.81, or about 490.5 newtons. Friction force is the coefficient times the normal load. That is 0.01 times 490.5, or 4.9 newtons.

Then, calculate the acceleration force. The acceleration is speed divided by time. That is 2 meters per second divided by 0.5 seconds, or 4 meters per second squared. The total moving mass is 50 kilograms. Acceleration force is 50 times 4, or 200 newtons.

Add the three components. Total force is 0 plus 4.9 plus 200, or 204.9 newtons. A designer would then select an actuator rated above this number, adding a safety margin for real world conditions.

This example shows how acceleration dominates the force requirement in this case. Friction adds only a small amount. If the acceleration were higher, the force would jump significantly. If the friction coefficient were higher, the friction term would grow.

Factors That Complicate the Calculation

Real systems rarely behave like ideal models. Several factors add complexity to the force calculation.

Inertia effects matter when the load changes during the move. If the system picks up or drops weight while traveling, the acceleration force changes. Designers may add a margin to cover the maximum expected load.

Temperature and lubrication affect friction. A guide that runs warm may have lower friction than one that runs cold. Lubrication type also changes the coefficient. Designers often use the highest expected friction value to be safe.

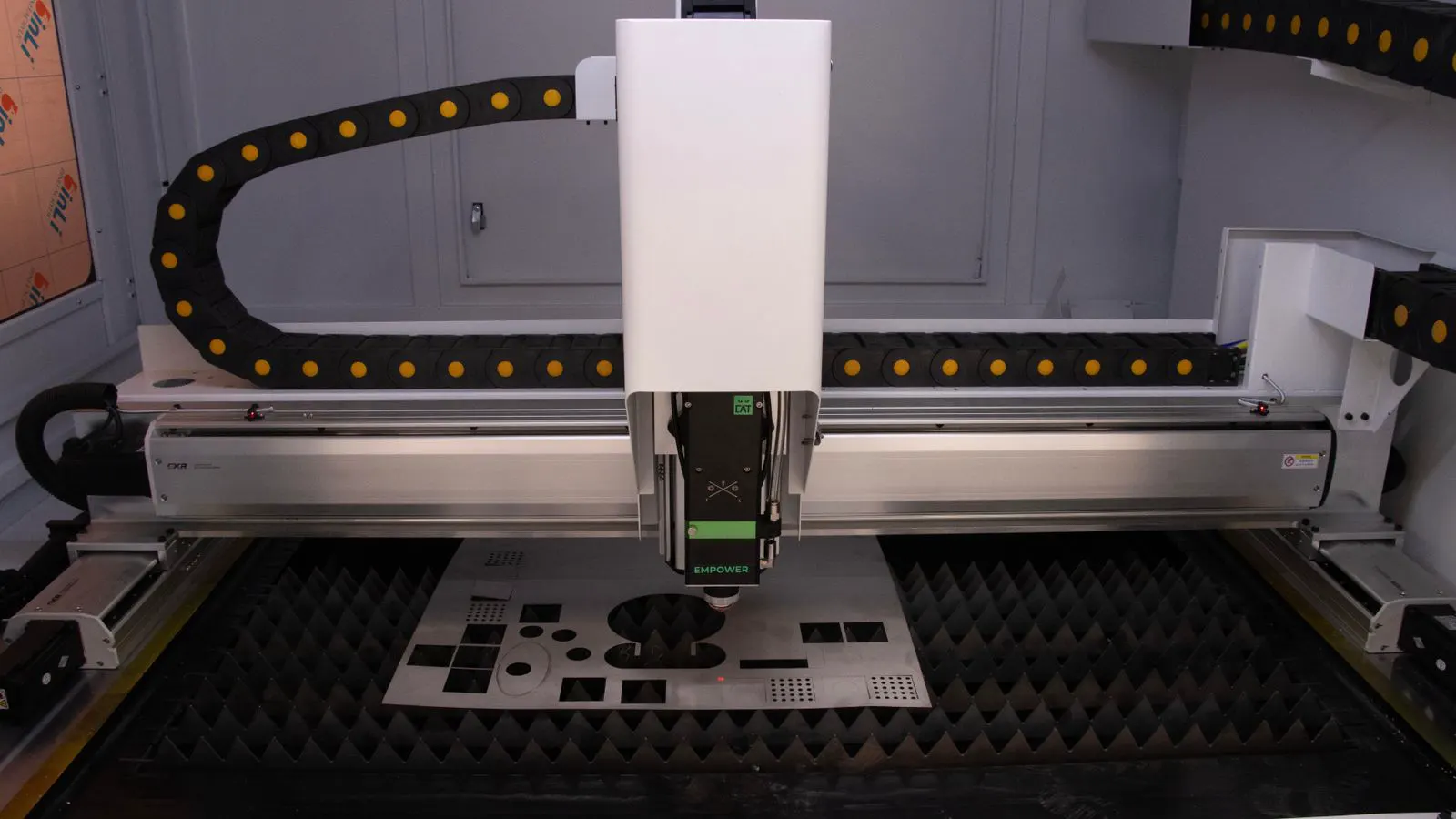

Cable and hose drag can add resistance. If the actuator is connected by a flexible hose or cable, the moving mass includes part of that line. The weight of the line adds to the load. The drag from the line adds to friction.

Mounting errors introduce side loads. If the slide is not perfectly aligned, friction increases. A misaligned guide creates binding. Designers check alignment during installation and testing.

Choosing the Right Actuator Based on Force

The calculated force guides the hardware selection. It tells the engineer what minimum capacity the actuator needs.

Actuator force requirements must exceed the calculated total force. A common practice is to add a safety factor of 1.2 to 1.5. This covers unknown loads and friction variations. The final size should handle the worst case, not just the average case.

Pneumatic actuators offer different force ranges than electric ones. Pneumatic cylinders can provide high force in compact packages. Electric actuators give precise control and easier speed regulation. The choice depends on the force needed and the control requirements.

A slide selection checklist helps verify the choice. It confirms that the actuator force exceeds the calculated requirement. It also checks that the speed and stroke match the task. This step prevents mismatched components.

Common Mistakes in Force Calculation

Designers make errors that lead to poor performance. These mistakes are often avoidable with careful checks.

Forgetting friction is the most common error. Some calculations ignore friction entirely. This works for light loads at low speeds but fails for heavy or precise systems. Always include friction.

Ignoring vertical gravity on a vertical slide is another error. Designers sometimes use the same force for vertical and horizontal axes. Gravity adds hundreds or thousands of newtons on a vertical lift. This must be included.

Using average load instead of maximum load causes under sizing. If the system moves a part that varies in weight, use the heaviest expected part. The actuator must handle the worst case.

Neglecting acceleration profiles leads to stall. If the system must stop and start frequently, the acceleration force is high. A slow, steady move needs less force. Match the calculation to the actual motion profile.

Final Checks Before Sourcing

Before ordering hardware, run the numbers one more time. Verify the mass, acceleration, friction, and orientation values. A spreadsheet with clear cells helps. It shows where each number comes from.

Check the actuator datasheet against the calculated force. Confirm that the rated force is above the requirement. Look at the pressure or voltage ratings too. The force must be available at the required speed.

Consider the environment. Dust, moisture, or heat can change friction and wear. A guide rated for clean indoor use may not perform well in a dusty shop. Match the hardware to the conditions.

A well done force calculation gives confidence in the design. It prevents failures and saves money. It turns a rough idea into a reliable machine.
